Oracle Cloud Ashburn x Chicago bandwidth test

This post is also available in: English

Those days I had to implement an Oracle Cloud "IAAS Classic" solution for databases and applications with DR environments, considering the primary region as Ashburn (uscom-east-1) and the standby region as Chicago (uscom-central-1). To make both regions talk securely over the internet, I had to implement a VPN connection between both regions.

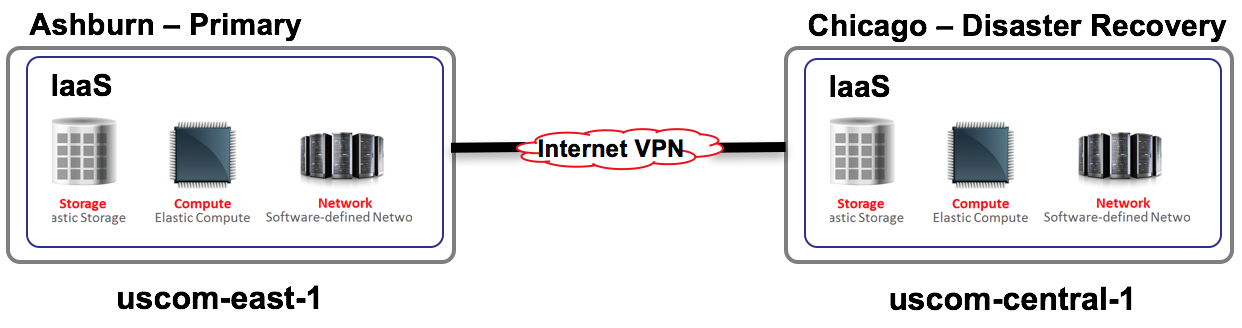

Before stating everything, I had to check that the connection between both regions would be large and fast enough to ensure the redo stream data generated on the instances running on Ashburn DC could be transferred to Chicago DC, with no delays. And vice-versa.

So, to measure the bandwidth between both DCs I used iperf3 utility, increasing the number of parallel connections from 1 to 100, and calculating the average speed in 1 minute frame. Please note that this test was performed using Public IP address, bypassing the VPN layer.

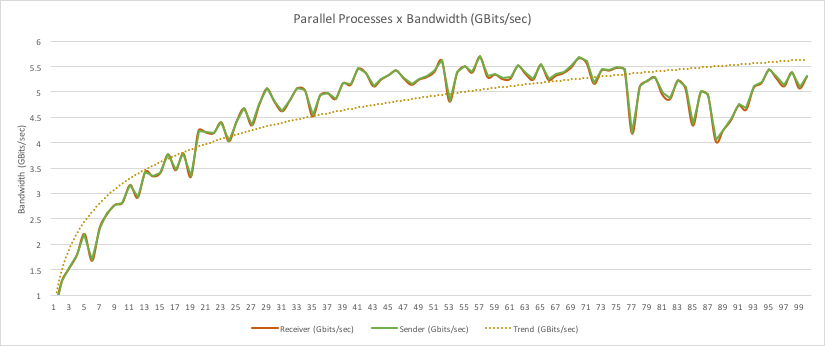

Below are the result tests of Total Bandwidth x Number of Connections:

And the raw output (double click and scroll for full text):

$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 1
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[  4]   0.00-60.00  sec  4.44 GBytes   635 Mbits/sec  555             sender
[  4]   0.00-60.00  sec  4.43 GBytes   635 Mbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 2
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  8.90 GBytes  1.27 Gbits/sec  909             sender
[SUM]   0.00-60.00  sec  8.90 GBytes  1.27 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 3
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  10.7 GBytes  1.53 Gbits/sec  1169             sender
[SUM]   0.00-60.00  sec  10.7 GBytes  1.53 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 4
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  12.5 GBytes  1.79 Gbits/sec  2272             sender
[SUM]   0.00-60.00  sec  12.5 GBytes  1.79 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 5
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  15.4 GBytes  2.21 Gbits/sec  2854             sender
[SUM]   0.00-60.00  sec  15.4 GBytes  2.21 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 6
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  11.8 GBytes  1.69 Gbits/sec  2742             sender
[SUM]   0.00-60.00  sec  11.8 GBytes  1.68 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 7
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  16.3 GBytes  2.33 Gbits/sec  4667             sender
[SUM]   0.00-60.00  sec  16.3 GBytes  2.33 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 8
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  18.2 GBytes  2.61 Gbits/sec  5049             sender
[SUM]   0.00-60.00  sec  18.2 GBytes  2.60 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 9
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  19.4 GBytes  2.78 Gbits/sec  4960             sender
[SUM]   0.00-60.00  sec  19.4 GBytes  2.78 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 10
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  19.7 GBytes  2.82 Gbits/sec  5678             sender
[SUM]   0.00-60.00  sec  19.7 GBytes  2.82 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 11
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  22.2 GBytes  3.17 Gbits/sec  5588             sender
[SUM]   0.00-60.00  sec  22.1 GBytes  3.17 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 12
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  20.4 GBytes  2.93 Gbits/sec  7590             sender
[SUM]   0.00-60.00  sec  20.4 GBytes  2.92 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 13
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  24.0 GBytes  3.43 Gbits/sec  5421             sender
[SUM]   0.00-60.00  sec  23.9 GBytes  3.43 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 14
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  23.3 GBytes  3.34 Gbits/sec  8865             sender
[SUM]   0.00-60.00  sec  23.3 GBytes  3.34 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 15
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  23.8 GBytes  3.41 Gbits/sec  7567             sender
[SUM]   0.00-60.00  sec  23.8 GBytes  3.41 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 16
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  26.4 GBytes  3.78 Gbits/sec  9267             sender
[SUM]   0.00-60.00  sec  26.3 GBytes  3.77 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 17
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  24.2 GBytes  3.47 Gbits/sec  10146             sender
[SUM]   0.00-60.00  sec  24.2 GBytes  3.46 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 18
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  26.5 GBytes  3.80 Gbits/sec  9632             sender
[SUM]   0.00-60.00  sec  26.5 GBytes  3.79 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 19
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  23.3 GBytes  3.34 Gbits/sec  13640             sender
[SUM]   0.00-60.00  sec  23.3 GBytes  3.33 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 20
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  29.6 GBytes  4.24 Gbits/sec  12223             sender
[SUM]   0.00-60.00  sec  29.6 GBytes  4.24 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 21
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  29.4 GBytes  4.21 Gbits/sec  13786             sender
[SUM]   0.00-60.00  sec  29.3 GBytes  4.20 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 22
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  29.3 GBytes  4.20 Gbits/sec  11510             sender
[SUM]   0.00-60.00  sec  29.3 GBytes  4.19 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 23
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  30.8 GBytes  4.40 Gbits/sec  11503             sender
[SUM]   0.00-60.00  sec  30.7 GBytes  4.40 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 24
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  28.2 GBytes  4.03 Gbits/sec  16838             sender
[SUM]   0.00-60.00  sec  28.1 GBytes  4.03 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 25
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  30.9 GBytes  4.43 Gbits/sec  12400             sender
[SUM]   0.00-60.00  sec  30.9 GBytes  4.42 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 26
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  32.7 GBytes  4.68 Gbits/sec  14334             sender
[SUM]   0.00-60.00  sec  32.6 GBytes  4.67 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 27
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  30.4 GBytes  4.35 Gbits/sec  13520             sender
[SUM]   0.00-60.00  sec  30.3 GBytes  4.34 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 28
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  33.2 GBytes  4.76 Gbits/sec  14995             sender
[SUM]   0.00-60.00  sec  33.2 GBytes  4.75 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 29
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.5 GBytes  5.08 Gbits/sec  13700             sender
[SUM]   0.00-60.00  sec  35.4 GBytes  5.06 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 30
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  33.6 GBytes  4.81 Gbits/sec  16360             sender
[SUM]   0.00-60.00  sec  33.5 GBytes  4.80 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 31
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  32.4 GBytes  4.63 Gbits/sec  17546             sender
[SUM]   0.00-60.00  sec  32.3 GBytes  4.62 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 32
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  33.8 GBytes  4.84 Gbits/sec  16175             sender
[SUM]   0.00-60.00  sec  33.8 GBytes  4.83 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 33
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.5 GBytes  5.08 Gbits/sec  15388             sender
[SUM]   0.00-60.00  sec  35.4 GBytes  5.07 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 34
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.2 GBytes  5.04 Gbits/sec  16878             sender
[SUM]   0.00-60.00  sec  35.1 GBytes  5.03 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 35
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  31.7 GBytes  4.54 Gbits/sec  20320             sender
[SUM]   0.00-60.00  sec  31.6 GBytes  4.52 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 36
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  34.5 GBytes  4.94 Gbits/sec  23477             sender
[SUM]   0.00-60.00  sec  34.4 GBytes  4.93 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 37
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  34.8 GBytes  4.98 Gbits/sec  25531             sender
[SUM]   0.00-60.00  sec  34.7 GBytes  4.97 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 38
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  34.0 GBytes  4.87 Gbits/sec  22540             sender
[SUM]   0.00-60.00  sec  33.9 GBytes  4.86 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 39
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.2 GBytes  5.18 Gbits/sec  23663             sender
[SUM]   0.00-60.00  sec  36.1 GBytes  5.17 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 40
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.0 GBytes  5.15 Gbits/sec  20853             sender
[SUM]   0.00-60.00  sec  35.9 GBytes  5.14 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 41
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.2 GBytes  5.47 Gbits/sec  23307             sender
[SUM]   0.00-60.00  sec  38.1 GBytes  5.45 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 42
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.6 GBytes  5.38 Gbits/sec  21347             sender
[SUM]   0.00-60.00  sec  37.5 GBytes  5.37 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 43
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.8 GBytes  5.12 Gbits/sec  23382             sender
[SUM]   0.00-60.00  sec  35.7 GBytes  5.11 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 44
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.7 GBytes  5.26 Gbits/sec  24618             sender
[SUM]   0.00-60.00  sec  36.6 GBytes  5.24 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 45
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.3 GBytes  5.34 Gbits/sec  25856             sender
[SUM]   0.00-60.00  sec  37.2 GBytes  5.33 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 46
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.0 GBytes  5.44 Gbits/sec  21343             sender
[SUM]   0.00-60.00  sec  37.9 GBytes  5.42 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 47
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.9 GBytes  5.28 Gbits/sec  24938             sender
[SUM]   0.00-60.00  sec  36.7 GBytes  5.26 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 48
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.0 GBytes  5.16 Gbits/sec  31976             sender
[SUM]   0.00-60.00  sec  35.9 GBytes  5.14 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 49
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.7 GBytes  5.26 Gbits/sec  22912             sender
[SUM]   0.00-60.00  sec  36.6 GBytes  5.24 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 50
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.1 GBytes  5.31 Gbits/sec  26398             sender
[SUM]   0.00-60.00  sec  36.9 GBytes  5.29 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 51
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.8 GBytes  5.41 Gbits/sec  30428             sender
[SUM]   0.00-60.00  sec  37.6 GBytes  5.39 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 52
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  39.3 GBytes  5.63 Gbits/sec  32234             sender
[SUM]   0.00-60.00  sec  39.2 GBytes  5.61 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 53
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  33.7 GBytes  4.82 Gbits/sec  40708             sender
[SUM]   0.00-60.00  sec  33.6 GBytes  4.81 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 54
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.6 GBytes  5.39 Gbits/sec  26800             sender
[SUM]   0.00-60.00  sec  37.5 GBytes  5.37 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 55
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.5 GBytes  5.52 Gbits/sec  28761             sender
[SUM]   0.00-60.00  sec  38.4 GBytes  5.50 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 56
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.7 GBytes  5.40 Gbits/sec  27830             sender
[SUM]   0.00-60.00  sec  37.6 GBytes  5.38 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 57
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  39.9 GBytes  5.71 Gbits/sec  28941             sender
[SUM]   0.00-60.00  sec  39.7 GBytes  5.69 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 58
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.1 GBytes  5.31 Gbits/sec  31642             sender
[SUM]   0.00-60.00  sec  37.0 GBytes  5.29 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 59
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.4 GBytes  5.36 Gbits/sec  26601             sender
[SUM]   0.00-60.00  sec  37.3 GBytes  5.34 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 60
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.8 GBytes  5.27 Gbits/sec  34734             sender
[SUM]   0.00-60.00  sec  36.7 GBytes  5.25 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 61
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.9 GBytes  5.29 Gbits/sec  38099             sender
[SUM]   0.00-60.00  sec  36.8 GBytes  5.26 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 62
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.6 GBytes  5.53 Gbits/sec  38161             sender
[SUM]   0.00-60.00  sec  38.5 GBytes  5.51 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 63
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.5 GBytes  5.37 Gbits/sec  27974             sender
[SUM]   0.00-60.00  sec  37.4 GBytes  5.35 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 64
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.8 GBytes  5.26 Gbits/sec  37504             sender
[SUM]   0.00-60.00  sec  36.6 GBytes  5.24 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 65
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.8 GBytes  5.56 Gbits/sec  40569             sender
[SUM]   0.00-60.00  sec  38.6 GBytes  5.53 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 66
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.7 GBytes  5.26 Gbits/sec  30704             sender
[SUM]   0.00-60.00  sec  36.6 GBytes  5.24 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 67
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.3 GBytes  5.35 Gbits/sec  36550             sender
[SUM]   0.00-60.00  sec  37.2 GBytes  5.32 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 68
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.7 GBytes  5.40 Gbits/sec  32058             sender
[SUM]   0.00-60.00  sec  37.5 GBytes  5.37 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 69
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.5 GBytes  5.51 Gbits/sec  34878             sender
[SUM]   0.00-60.00  sec  38.3 GBytes  5.48 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 70
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  39.7 GBytes  5.68 Gbits/sec  32010             sender
[SUM]   0.00-60.00  sec  39.5 GBytes  5.66 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 71
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  39.1 GBytes  5.60 Gbits/sec  26776             sender
[SUM]   0.00-60.00  sec  38.9 GBytes  5.57 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 72
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.2 GBytes  5.18 Gbits/sec  36237             sender
[SUM]   0.00-60.00  sec  36.0 GBytes  5.16 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 73
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.1 GBytes  5.45 Gbits/sec  32541             sender
[SUM]   0.00-60.00  sec  37.9 GBytes  5.42 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 74
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.0 GBytes  5.44 Gbits/sec  40630             sender
[SUM]   0.00-60.00  sec  37.8 GBytes  5.42 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 75
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.3 GBytes  5.49 Gbits/sec  31906             sender
[SUM]   0.00-60.00  sec  38.2 GBytes  5.47 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 76
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.1 GBytes  5.45 Gbits/sec  42777             sender
[SUM]   0.00-60.00  sec  37.9 GBytes  5.43 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 77
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  29.3 GBytes  4.20 Gbits/sec  72788             sender
[SUM]   0.00-60.00  sec  29.2 GBytes  4.18 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 78
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.8 GBytes  5.12 Gbits/sec  43979             sender
[SUM]   0.00-60.00  sec  35.6 GBytes  5.10 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 79
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.6 GBytes  5.23 Gbits/sec  41788             sender
[SUM]   0.00-60.00  sec  36.4 GBytes  5.21 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 80
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.1 GBytes  5.30 Gbits/sec  40703             sender
[SUM]   0.00-60.00  sec  36.9 GBytes  5.28 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 81
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  34.7 GBytes  4.97 Gbits/sec  64616             sender
[SUM]   0.00-60.00  sec  34.5 GBytes  4.94 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 82
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  34.1 GBytes  4.88 Gbits/sec  56353             sender
[SUM]   0.00-60.00  sec  33.9 GBytes  4.86 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 83
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.6 GBytes  5.24 Gbits/sec  37069             sender
[SUM]   0.00-60.00  sec  36.4 GBytes  5.22 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 84
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.6 GBytes  5.09 Gbits/sec  51745             sender
[SUM]   0.00-60.00  sec  35.4 GBytes  5.07 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 85
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  30.4 GBytes  4.36 Gbits/sec  64969             sender
[SUM]   0.00-60.00  sec  30.3 GBytes  4.34 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 86
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.0 GBytes  5.02 Gbits/sec  54833             sender
[SUM]   0.00-60.00  sec  34.8 GBytes  4.99 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 87
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  34.6 GBytes  4.95 Gbits/sec  56437             sender
[SUM]   0.00-60.00  sec  34.4 GBytes  4.92 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 88
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  28.3 GBytes  4.05 Gbits/sec  47278             sender
[SUM]   0.00-60.00  sec  28.1 GBytes  4.03 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 89
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  29.9 GBytes  4.28 Gbits/sec  40591             sender
[SUM]   0.00-60.00  sec  29.7 GBytes  4.25 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 90
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  31.2 GBytes  4.47 Gbits/sec  32226             sender
[SUM]   0.00-60.00  sec  31.0 GBytes  4.44 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 91
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  33.2 GBytes  4.76 Gbits/sec  40975             sender
[SUM]   0.00-60.00  sec  33.0 GBytes  4.73 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 92
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  32.7 GBytes  4.68 Gbits/sec  29841             sender
[SUM]   0.00-60.00  sec  32.5 GBytes  4.65 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 93
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.7 GBytes  5.11 Gbits/sec  55298             sender
[SUM]   0.00-60.00  sec  35.5 GBytes  5.08 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 94
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  36.3 GBytes  5.19 Gbits/sec  47390             sender
[SUM]   0.00-60.00  sec  36.1 GBytes  5.17 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 95
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  38.1 GBytes  5.46 Gbits/sec  42721             sender
[SUM]   0.00-60.00  sec  37.9 GBytes  5.43 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 96
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.0 GBytes  5.29 Gbits/sec  57684             sender
[SUM]   0.00-60.00  sec  36.8 GBytes  5.26 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 97
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.9 GBytes  5.14 Gbits/sec  46511             sender
[SUM]   0.00-60.00  sec  35.7 GBytes  5.11 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 98
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.7 GBytes  5.40 Gbits/sec  46307             sender
[SUM]   0.00-60.00  sec  37.5 GBytes  5.38 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 99
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  35.6 GBytes  5.10 Gbits/sec  53705             sender
[SUM]   0.00-60.00  sec  35.4 GBytes  5.07 Gbits/sec                  receiver
$ iperf3 -c 129.X.X.X -p 5201 -t 60 -i 60 -P 100
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[SUM]   0.00-60.00  sec  37.2 GBytes  5.32 Gbits/sec  54443             sender
[SUM]   0.00-60.00  sec  37.0 GBytes  5.30 Gbits/sec                  receiver

Conclusions:

  • The connection speed between 2 servers in those regions tend to stabilize at 5.15 Gbits/sec when 40 parallels or more connections are opened.
  • One single connection doesn't perform faster than 0.635 Gbits/sec, so it's better to configure your database to do parallel redo shipping when your redo generation is bigger than that. Configure the number of connections based on the database redo generation and the graph above.
  • Same thing applies for application DR. Whatever tool you are using, consider always parallel.
  • Oracle probably has a backbone and do internal routing of connections involving Public IPs of both regions, to achieve this ~ 5 Gbits/sec bandwidth.
Have you enjoyed? Please leave a comment or give a 👍!

Deixe um comentário

Seu e-mail não será publicado.
